Accucold Compact Refrigerator-Freezer with Front-Mounted Lock - S19LWH

ACCUCOLD offers a quality line of general purpose refrigeration products for medical, scientific, and laboratory facilities.

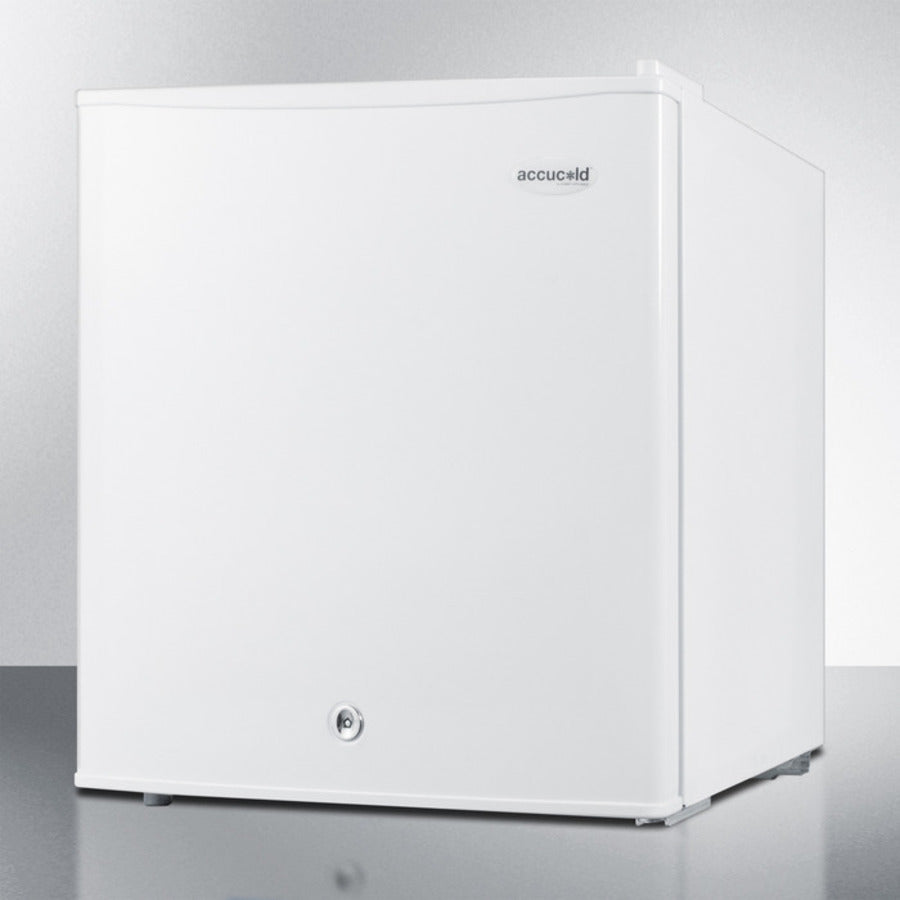

The S19LWH is a compact refrigerator-freezer sized for easy placement on top of counters. This unit comes in a white finish and has a user-reversible door swing. A factory installed keyed lock ensures added security.

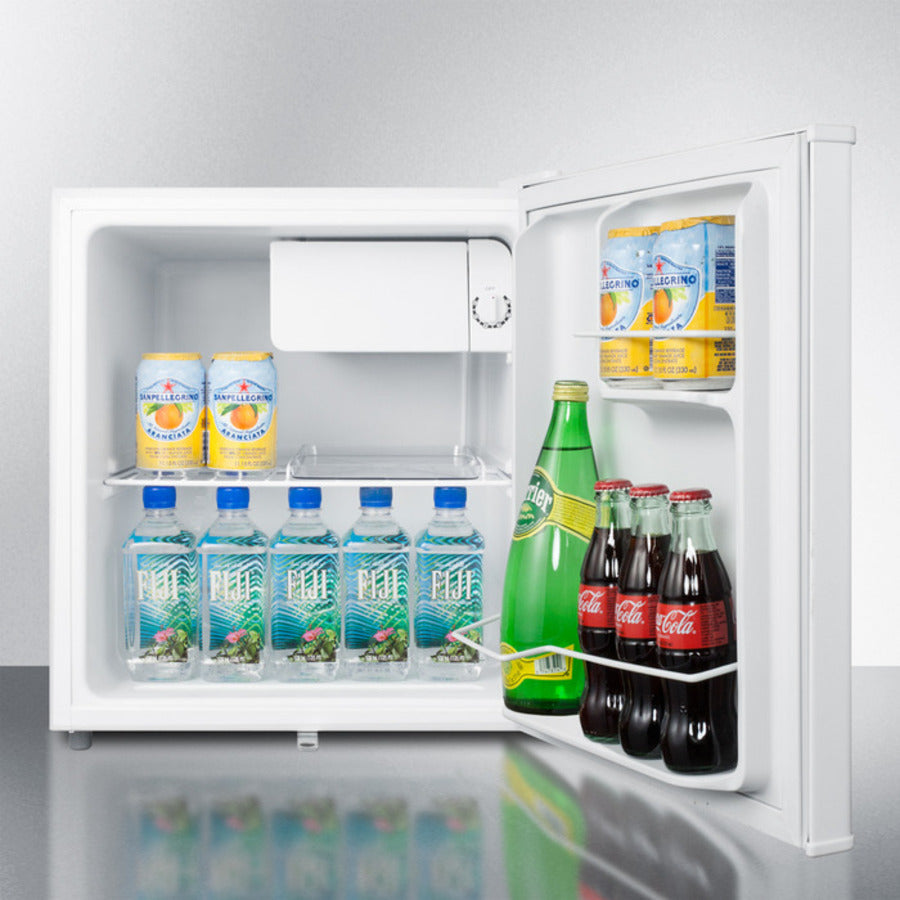

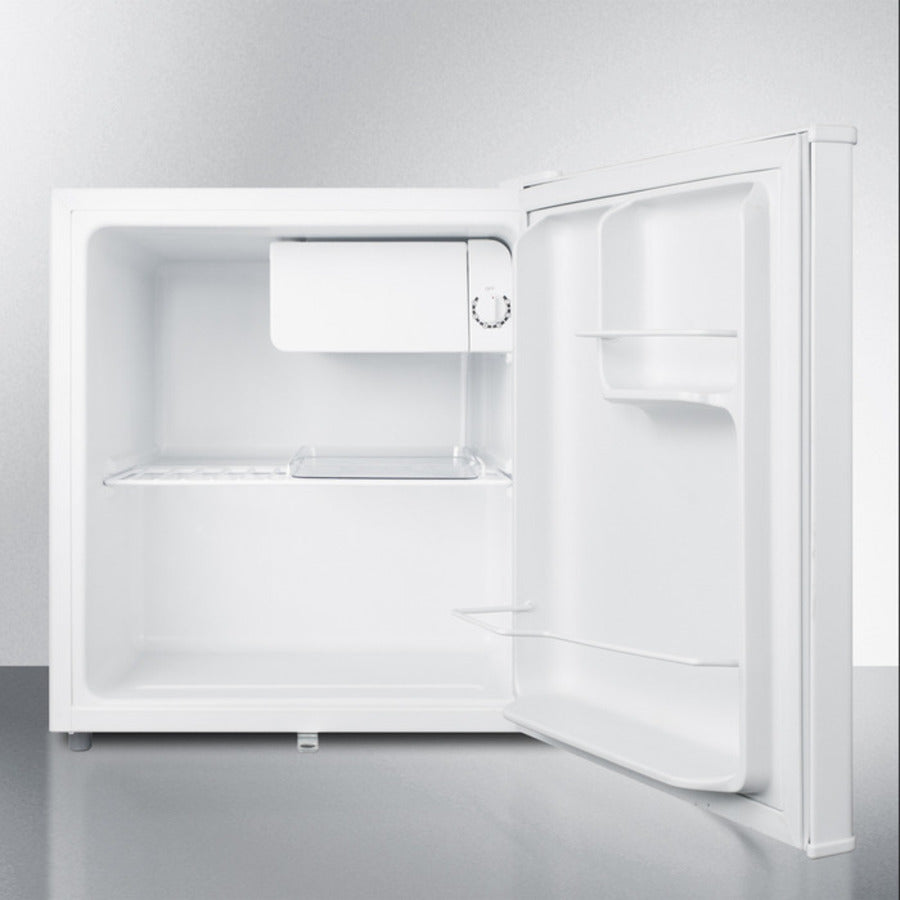

Inside, the manual defrost S19LWH features 1.7 cu.ft. of cold storage. A compact freezer compartment is perfectly sized for ice packs or other small items. A removable wire shelf and two door racks offer convenient options for refrigerated storage. The adjustable thermostat is located on the front to the freezer compartment, making it easy to manage the temperature.

Specially featured for use in clinics, hospitals, and laboratories, the S19LWH is the ideal compact for medical facilities. This unit is not designed for residential applications or vaccine storage. For this unit with more advanced features, see the S19LWHPLUS2.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup.

Features

• Factory installed lock: Keyed lock ensures a secure interior
• Reversible door: User-reversible door swing allows for more flexibility in placing the unit
• Manual defrost: Static cooling system
• Door storage: Store large bottles right on the door for easy access
• Adjustable thermostat: Dial thermostat conveniently located on the door to the freezer compartment for easy temperature management
• Removable shelf: Wire shelf included for storage convenience
• Compact dimensions: Sized for easy use on top of counters
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview

• Height of Cabinet: 19.75" (50 cm)
• Height to Hinge Cap: 20.13" (51 cm)
• Width: 17.75" (45 cm)
• Depth: 17.63" (45 cm)
• Depth with door at 90°: 33.88" (86 cm)
• Capacity: 1.7 cu.ft. (48 L)
• Defrost Type: Manual
• Door: White
• Cabinet: White
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Amps: 0.78
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 31.0 lbs. (14 kg)
• Shipping Weight: 43.0 lbs. (20 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101031910

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes
• Adjustable Shelves: Yes
• Refrigerator - Interior Height: 16.13" (41 cm)
• Refrigerator - Interior Width: 14.88" (38 cm)
• Refrigerator - Interior Depth: 14.25" (36 cm)
• Refrigerator - Shelf Type: Wire
• Refrigerator - Shelf Qty: 1
• Refrigerator - Full Door Shelves: 1
• Refrigerator - Half Door Shelves: 1
• Freezer - Interior Height: 4.38" (11 cm)
• Freezer - Interior Width: 8.75" (22 cm)
• Thermostat Type: Dial
• Refrigerant Type: R134a
• Refrigerant Amount: 1.13 oz.
• High Side PSI: 250.0
• Low Side PSI: 110.0
• Compressor Step Height: 7.38" (19 cm)
• Compressor Step Width: 14.88" (38 cm)
• Compressor Step Depth: 6.0" (15 cm)

Available Upgrades

Exterior

• FA Front: Fan assist
• Alarm/Thermometer
• FA Rear: Fan assist
• HG: Hospital grade cord
• Latch for door
• LHD: Left hand door swing
• ODA: Open door alarm
• SCD: Self-closing door
• Extra key
• PH: Probe Hole
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Lock

• AC Keypad
• KEYPAD

Handle

• TBC Copper Towel Bar Handle
• CP Full-Length Copper Pipe Handle

Manufacturer Resources

• (.dwg)
