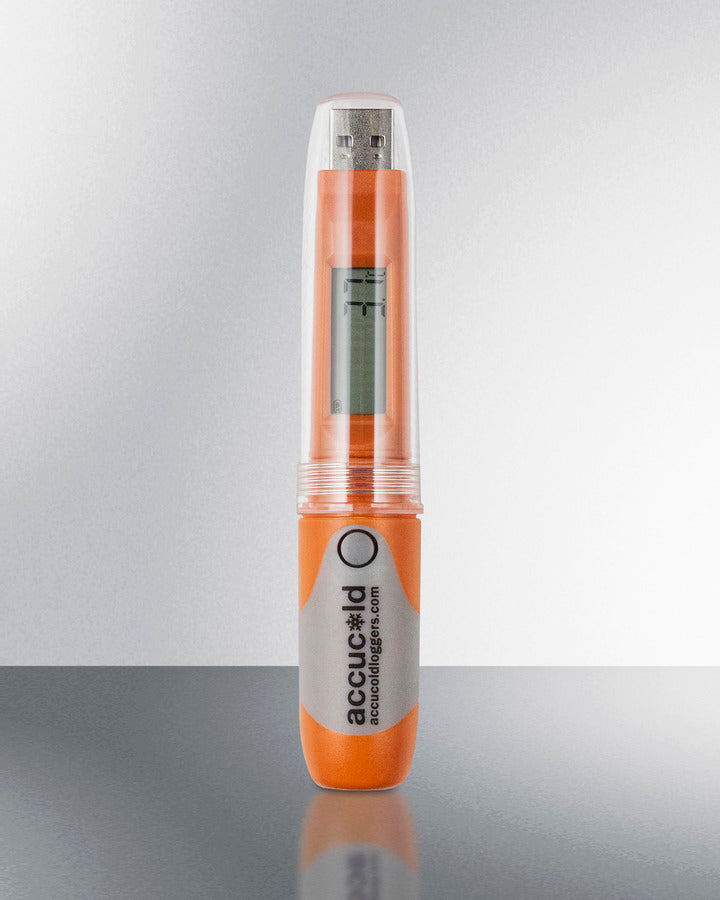

Accucold NIST Calibrated Portable Data Logger - DLSA11CAL

Accucold offers a range of user-friendly options for versatile and reliable temperature logging in a variety of applications.

This is a standalone temperature loggers ideal for use when transporting items that need to be monitored. The compact size makes it easy to place in the logged area without compromising capacity. The logger includes an LCD screen with a digital display of the temperature to the nearest tenth of a degree, as recommended by the CDC for vaccine storage.

You can also view the average temperature and mean kinetic temperature, a simplified way of showing the overall effect of temperature fluctuation during the recording period. This unit includes a protective transparent case that allows you to view the data without disrupting recording.

Designed for use with Windows-based platforms, it includes downloadable software that is easy to program to your specific needs. Users can set the recording interval from every 10 seconds to 24 hours and specify whether to display the temperature in Celsius or Fahrenheit. Users can also choose to set a minimum/maximum temperature alarm that will show a visual indicator alert if the temperature goes out of range.

These readings will be color-coded in the data exports for easy analysis. The logger offers an accuracy range of .5ºC in the temperature range of -20 to 40ºC, and 1ºC outside of this range. It records all data to the internal USB drive and can hold up to 32,000 readings. When you're ready to view your data, simply plug your logger into your computer and open the software in Excel, Adobe Illustrator, or PDF format. From there, you can easily view and export the data in graphical or tabular form.

These units are NIST calibrated in Accucold's ISO/IEC 17025:2005 certified laboratory and ship with a calibration certificate for your records. All DLSA11CAL loggers include a replaceable lithium battery and a low battery alert on the LCD display.

NOTE: Due to the process of calibration, there is a one week lead time on calibrated orders. For these loggers without NIST certification, see the DLSA11 series.

Features

• NIST calibrated logger: Unit is calibrated to NIST standards in our ISO/IEC 17025:2005 certified laboratory and ships with a certificate
• Reliable logging: Accurate within .5ºC in a -20 to 40ºC range (accuracy in other ranges is 1ºC)
• User-set logging interval: Users can program the timing interval for data logging
• USB connection: Data logger includes integrated USB drive that lets you plug the whole logger into your computer's USB port for easy analysis
• Versatile software: Allows you to view the data in Excel, Adobe Illustrator, or PDF
• Temperature display: LCD screen displays the current and high/low temperatures, as well as the average temperature and Mean Kinetic Temperature to show the overall effect of temperature fluctuations during the recording period
• Displays Celsius or Fahrenheit: Users can set their preference through the software before using the logger
• Visual alarm indicator: If setting high/low temperature parameters, the LCD display will show an "x" to communicate that the temperature is out of range. Out of range recordings will be color-coded in the exported report
• Compact size: Portable design lets you place the logger virtually anywhere for convenient logging
• Large recording capacity: Logger can store up to 32,000 data points
• Transparent cover: Clear cap allows you to easily view the data without disrupting the recording
• Built-in NTC thermistor: Internal sensor records temperature straight to the data logger for easy viewing when inserted in your computer's USB port
• Battery-powered: Includes a replaceable 3.6V lithium battery. Battery life varies depending on recording parameters, but is specified at 12 months+ when used at 25ºC to record in 15 minute intervals
• Low battery alert: Battery symbol flashes on the LCD screen when battery needs to be replaced

Specifications

Overview

• Height of Cabinet: 5.25" (13 cm)
• Width: 0.75" (2 cm)
• Depth: 0.75" (2 cm)
• Weight - DLSA11CAL: 1.0 lbs. (0 kg)
• Shipping Weight - DLSA11CAL: 5.0 lbs. (2 kg)

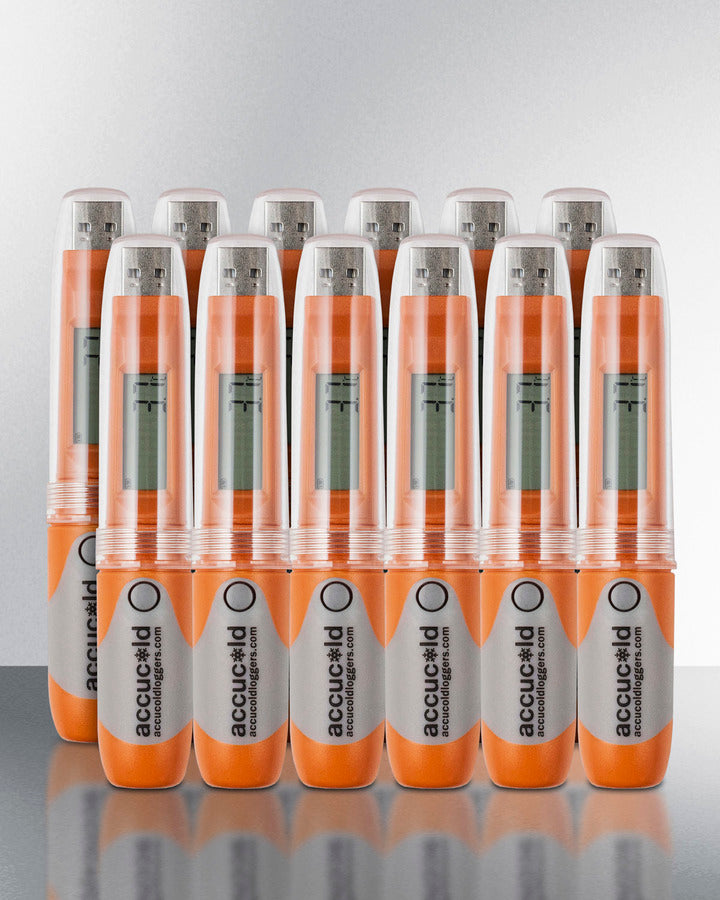

• Weight - DLSA11CAL-12P: 0.5 lbs. (0 kg)
• Shipping Weight - DLSA11CAL-12P: 2.5 lbs. (1 kg)

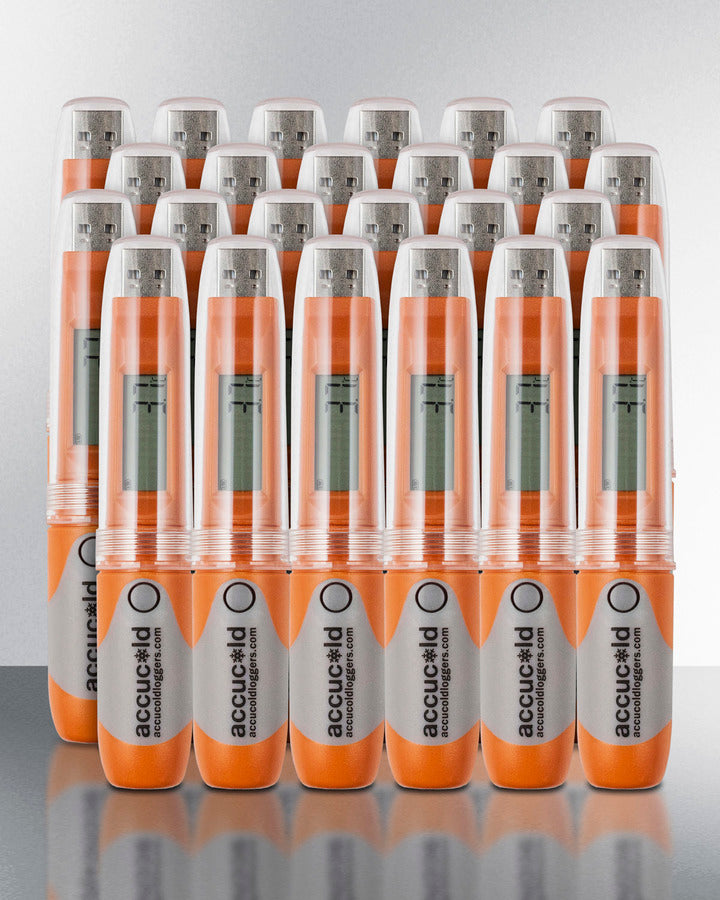

• Weight - DLSA11CAL-24P: 0.5 lbs. (0 kg)
• Shipping Weight - DLSA11CAL-24P: 2.5 lbs. (1 kg)
• Parts & Labor Warranty: 90 Days
